Manual Test Stand Model TSA750 / TSA750H
The lever operated Force Measurement Test Stand Model TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750 lbF (3.75 kN) of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.

Downloads Features Optional Equipment In The Box

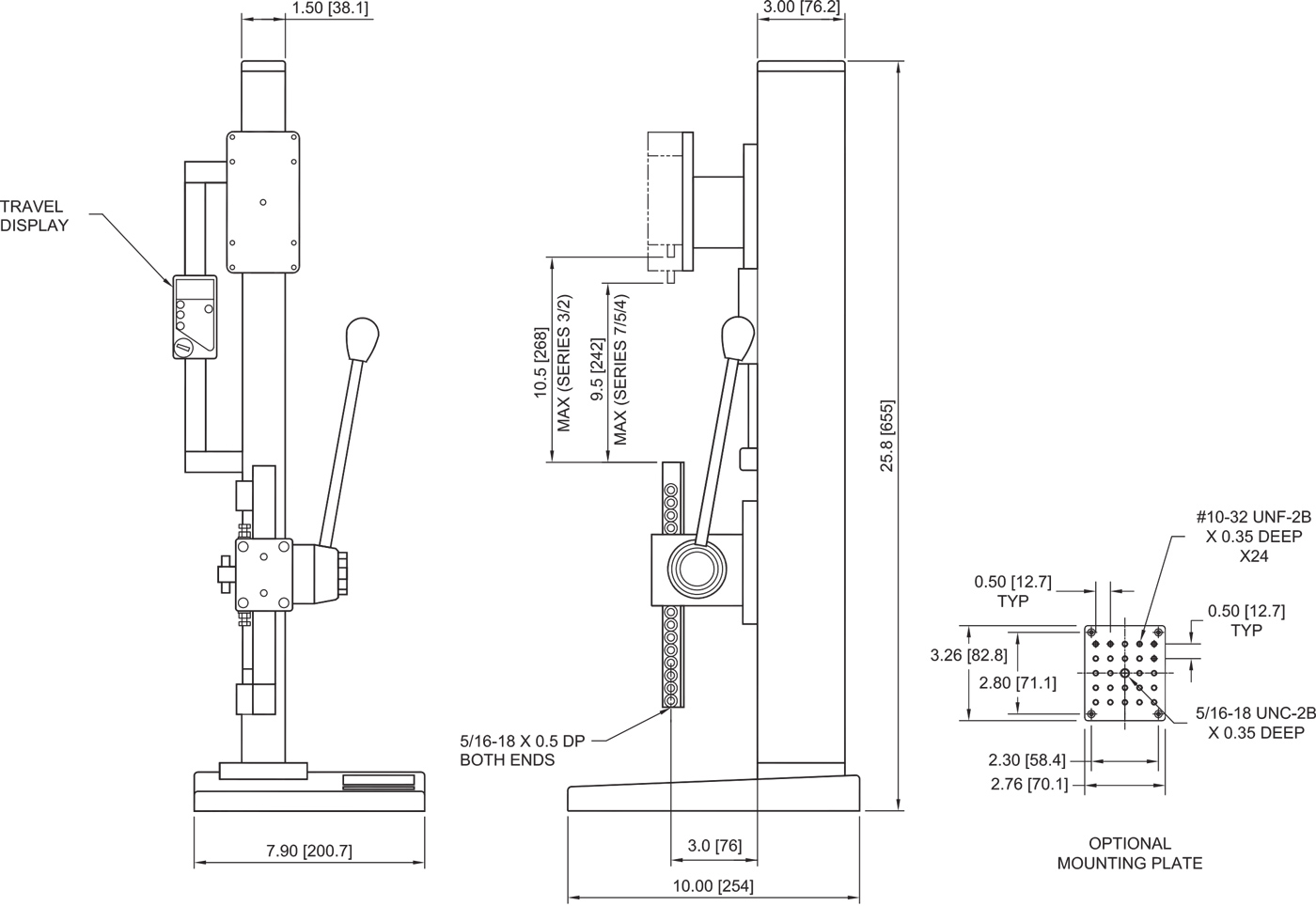

Gallery   PC Connection   Ordering Information   Dimensions



  Data Sheet Stand Comparison Chart Solid Models - TSA750H
User's Guide   Solid Models - TSA750




gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail gallery thumbnail




  • Maximum force: 750 lbF [3.75 kN]
  • Maximum travel, with stops: 3.75" [95 mm]
  • Maximum travel, without stops: 6" [152 mm]
  • Travel rate: 3" [76.2 mm]/lever revolution
  • Compatible with all Mark-10 force gauges, accessories and grips
  • Loading lever can be positioned in 30° increments for ease of operation
  • Threaded holes for bench mounting
  • Adjustable travel stops
  • Precision ground rack and pinion mechanism
  • Adjustable wear plates for smooth, precise motion
  • Optional digital travel display
  • Friction brake



Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC. If the ESM001 digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:
Travel display (Mitutoyo) <=> 09-1066 cable, Mitutoyo <=> MRS100A converter, Mitutoyo to RS-232 <=> RSU100 converter, RS-232 to USB (optional)
Ordering information for these accessories can be found here.


  A wide range of force gauges and gripping fixtures
  Digital travel display*
6" [150 mm] travel, 0.0005" [0.01 mm] resolution, SPC output for automated data collection. For output of travel data to a PC, the following items are required: 09-1066 cable and MRS100A communication adapter. Note: continuous data output rate is limited to 2 Hz.
  Horizontal / wall mounting kit
Pair of mounting legs for adapting the test stand to a bench, instead of the base.
    Column extension
Column can be extended to custom lengths (see Ordering Information)
    Mounting table kit
Contains a matrix tapped holes for grip and fixture mounting


Eye end adapters
Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges


* Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance.



Model Description US Price
TSA750 Test stand, lever-operated, 750 lbF, vertical $995.00
TSA750H Test stand, lever-operated, 750 lbF, horizontal $995.00
TSA001 Digital travel display for TSA750/TSA750H $650.00
TSA002 Horizontal/wall mounting kit for TSA750/TSC1000 $150.00
TSA003 Mounting table kit for TSA750/TSA750H $185.00
AC1004 Mounting kit, indicator to TS-Series test stands $85.00
--- Column extension $125.00 base + $5.00 per inch




gallery thumbnail

The TSA750 and TSA750H test stands are shipped as shown at left, and include the following accessories:

(1) G1028 small hook
(1) G1038 medium hook
(1) G1009 compression plate, 2” dia.
(2) #10-32 stud with jam nuts
(4) Thumb screw for force gauges with 0.12 - 500 lbF capacities
(4) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities
(1) Allen wrench set
(1) Resource CD
(1) Base (TSA750)
(2) Mounting leg with hardware (TSA750H)
(1) Additional column cap with hardware (TSA750H)



TSA750

TSA750H
