Series TT01
Cap Torque Testers
Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
Series TT01 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
Series TT01 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT01’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
- Features
- Specifications
- Capacity x Resolution
- Display Indicators
- In The Box
- Optional Equipment
- Dimensions
- Downloads
Features
- Moveable 1.25" (31 mm) length posts accommodate a wide range of sample shapes and sizes
- Available extended post lengths and other gripping options
- USB, RS-232, Mitutoyo, and analog outputs
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- First / second peak detection for slip and breakaway torques in tamper evident closures
- 1,000-point data memory with statistics and outputs
- Password protection prevents unauthorized changes
- Programmable set point indicators and outputs for pass/ fail determination
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- Configurable audio alarms and key tones
- 5 selectable units of measurement
- MESUR® Lite data collection software included
Specifications
| Accuracy: | ±0.3% of full scale | |
| Sampling rate: | 7,000 Hz | |
| Bottle diameter range: | Ø0.5 – 7.5 in [12.7 – 189.4 mm] With CT001 optional jaws: Ø0 – 5.9 in [0 – 149.9 mm] With CT003 optional jaws: Ø0 – 4.6 in [116.8 mm] |
|
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low. | |
| Battery life: | Backlight on: up to 7 hours of continuous use Backlight off: up to 24 hours of continuous use |
|
| Measurement units: | ozFin, lbFin, kgFcm, Nm, Ncm | |
| Output: | USB / RS-232: Configurable up to 115,200 baud. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog: ±1 VDC, ±2% of full scale at capacity, General purpose: Three open drain outputs, one input. Set points: Three open drain lines. |
|
| Configurable settings: | Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration | |
| Safe overload: | 150% of full scale (display shows “OVER” at 110% and above) | |
| Weight: | 8.4 lb [3.8 kg] | |
| Shipping weight: | 10.2 lb [4.6 kg] | |
| Environmental requirements: | 40°F – 100°F [5°C – 45°C], < 96% humidity (non-condensing) | |
| Warranty: | 3 years (see individual statement for further details) | |
| HS code: | Model no. | HS code: |
| MTT01 (all capacities) | 9024100000 | |
|
CERT CT001,2,3,4,5,6,7 AC1036 AC1077 15-1004 AC1111 AC1109 AC1118 AC1030 AC1031 AC1032 AC1035 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
Capacity x Resolution
| Capacity x Resolution | |||||
|---|---|---|---|---|---|
| Model | lbFin | ozFin | kgFcm | Ncm | Nm |
| MTT01-12 | 12 x 0.005 | 192 x 0.1 | 14 x 0.01 | 135 x 0.1 | 1.35 x 0.001 |
| MTT01-25 | 25 x 0.01 | 400 x 0.2 | 28 x 0.02 | 290 x 0.2 | 2.9 x 0.002 |
| MTT01-50 | 50 x 0.02 | 800 x 0.5 | 58 x 0.05 | 570 x 0.5 | 5.7 x 0.005 |
| MTT01-100 | 100 x 0.05 | 1600 x 1 | 116 x 0.1 | 1150 x 0.5 | 11.5 x 0.005 |
In The Box
Series TT01 torque testers are shipped as shown at left, and include the following accessories:
(4) Sample gripping posts
(1) USB cable
(1) AC adapter
(1) Battery
(1) Certificate of calibration without data
Optional Equipment
|
Extended length posts (CT005, CT006) 2.5" (63 mm) and 4" (101 mm) lengths available. |
|
Flat rubber jaws (CT001) Set of rubber jaws for gripping square or odd shaped containers. |
|
Adjustable jaws (CT003) 8 rubber-edged arms may be individually adjusted in 45° increments, for gripping square or odd shaped containers. |
|
 MESUR®gauge Plus software (15-1005) Tabulates and plots load vs. time or load vs. travel. Also calculates statistics, exports to Excel, and more. |
|
Carrying case (CT002) Provides storage space for the TT01 tester, gripping jaws, AC adapter, and accessories. |
|
Calibration kit (AC1036) |
|
Connector cover kit (AC1077) Helps protect the rear connectors against liquid entry. Three rubber covers are supplied, for the 15-pin multi-use connector, micro USB connector, and power jack. |
|
Certificate of calibration with data (CERT) |

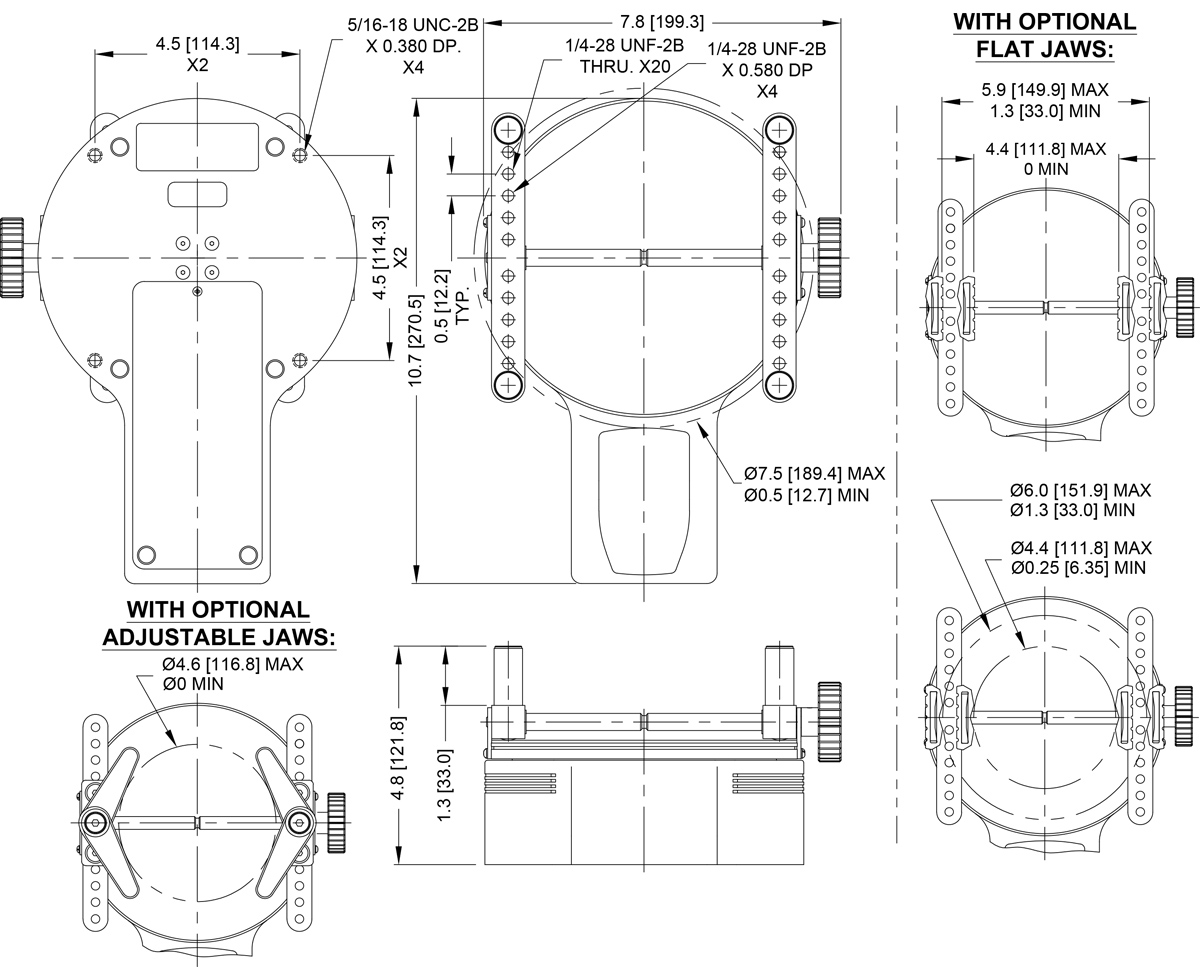

Dimensions
IN [MM]
Ordering Information
| Model | Description | US Price |
|---|---|---|
| MTT01-12 | Cap torque tester, 12 lbFin / 192 ozFin / 14 kgFcm / 135 Ncm / 1.35 Nm | $1,610.00 |
| MTT01-25 | Cap torque tester, 25 lbFin / 400 ozFin / 28 kgFcm / 290 Ncm / 2.9 Nm | $1,610.00 |
| MTT01-50 | Cap torque tester, 50 lbFin / 800 ozFin / 58 kgFcm / 570 Ncm / 5.7 Nm | $1,610.00 |
| MTT01-100 | Cap torque tester, 100 lbFin / 1600 ozFin / 116 kgFcm / 115 Ncm / 11.5 Nm | $1,610.00 |
| Additional Items to Consider | ||
| CERT | Certificate of calibration with data | $85.00 |
| CT001 | Flat jaws for TT01, pair | $85.00 |
| CT002 | Carrying case for TT01 | $220.00 |
| CT003 | Adjustable jaws for TT01, pair | $395.00 |
| CT004 | Spare set of 4 posts, 1.25" (included with TT01) | $170.00 |
| CT005 | Set of 4 posts, 2.5" | $195.00 |
| CT006 | Set of 4 posts, 4" | $225.00 |
| CT007 | Kit of 4 posts of each length (12 total) | $450.00 |
| AC1036 | Calibration kit for TT01 (weights not included) | $760.00 |
| AC1077 | Connector cover kit | $25.00 |
| 15-1005 | MESUR®gauge Plus Software | $710.00 |
| AC1111 | Spare USB cable | $30.00 |
| AC1109 | Cable, Series TT01 to RS-232 | $80.00 |
| AC1118 | Spare rechargeable battery | $20.00 |
| AC1030 | Spare AC adapter, 110V | $45.00 |
| AC1031 | Spare AC adapter, 220V EUR | $45.00 |
| AC1032 | Spare AC adapter, 220V UK | $45.00 |
| AC1035 | Spare AC adapter, 220V AUS | $45.00 |
All models include 110V AC adapters. Add suffix ‘E’ for euro plug (220V), ‘U’ for UK plug (220V), or ‘A’ for Australian plug (220V). Ex: MTT01-12E, MTT01-50U, MTT01-100A
